Place of Origin | Shenzhen, China. |
ब्रांड नाम | SINOMATIC |
प्रमाणन | CE/ ISO |
Model Number | SN-TK01 |

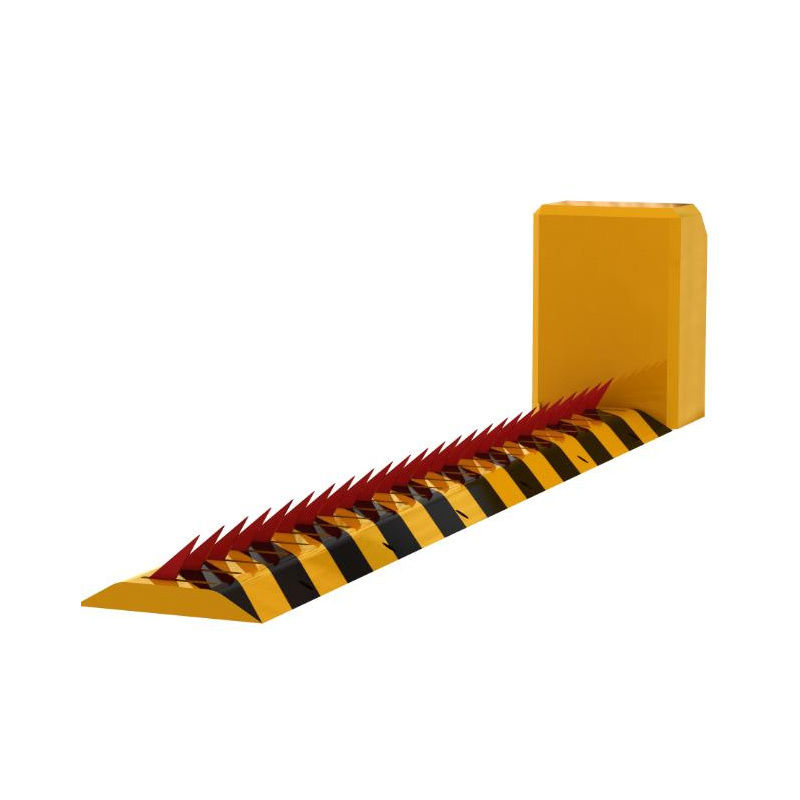

PRODUCT DESCRIPTION
The aboveground foundation shell is made of high-strength steel plates and equipped with a solid keel support structure.A rotating shaft is installed in the casing and is connected to the tire breaking teeth.
Each piece of solid tire teeth is welded to a reliable rotating shaft at a mutual distance of 140mm, and the lifting and lowering movements are performed through the rotating shaft.
The top cover of traffic spike is designed in accordance with DIN 1072 standards and is very strong and can carry large vehicles over 100kn to pass smoothly.
It adopts motor power mode, simple installation, easy maintenance, high safety performance and long service life.
PRODUCT DETAILS
Control unit
The motor controller has a waterproof design on the outside and is driven by an electromechanical power unit internally. It is easy to lift and lower. It can be controlled by a variety of intelligent controls such as remote mobile phone APP, license plate recognition, ground sensing linkage, traffic light linkage, etc.
Tire killer barb
Made of A3 carbon steel, if an unauthorized vehicle is forcibly rammed into it, it will directly damage the vehicle tires.
Tire breaking blade height 130MM (can be customized)
Tire breaking blade thickness 10MM (can be customized).
Fixed installation port
Traffic Spike has the same fixing port and is fixed with the ground by expansion screws, making it more stable and firm
PRODUCT SPECIFICATION
Material |
A3 steel |
Surface treatment |
Painting |
IP grade |
IP68 |
Standard color |
Yellow/blacke, Red/white |
Body Length |
3m (standard) |
Body Width |
520mm (standard) |
Height from ground |
80mm |
Min. weight capacity |
60T (for 10mm thickness plate) |
Blade height |
120mm |
Blade thickness |
10mm |
Operation mode |
Electromechanical |
Working environment |
-40℃~+70℃ |
Control mode |
Short range wireless remote control/drive-by-wire |
Control distance |
≤50M |
Up/Down speed |
1a~2s |
Voltage |
220V ±10% |
